Product Details:
|
| General Use: | Commercial Furniture | Material: | Steel, PP And Steel |
|---|---|---|---|
| Type: | Laboratory Furniture | Product Name: | Lab Fume Extraction Arm / Detal Suction Hood |
| Function: | Remove Dust Gas | 360° Swing Device: | Enabling Movement Radius To Max.1600mm |
| Telescopic Catheter: | 50 / 75 / 80 / 90 / 110mm PP | Joints: | PP Polypropylene Material |
| Highlight: | flexible dust and fume extraction arms,75mm Laboratory Flexible Fume Extraction Arm,Ceiling Mounted Flexible Fume Extraction Arm |
||

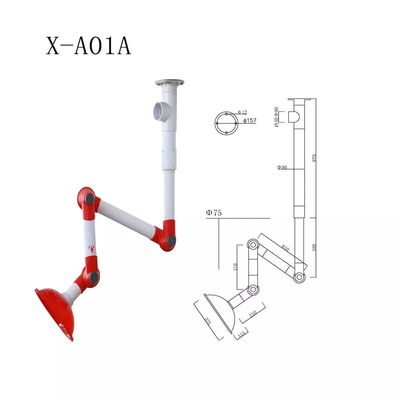

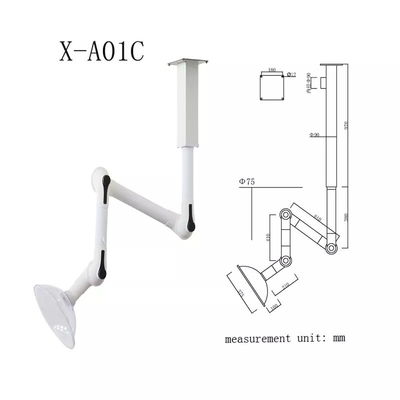

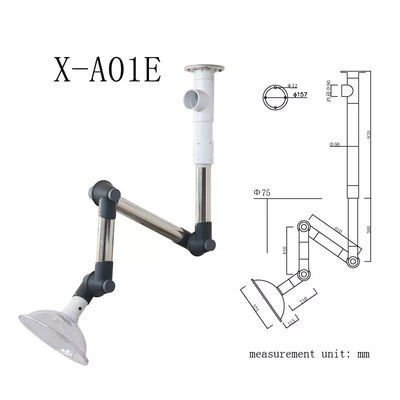

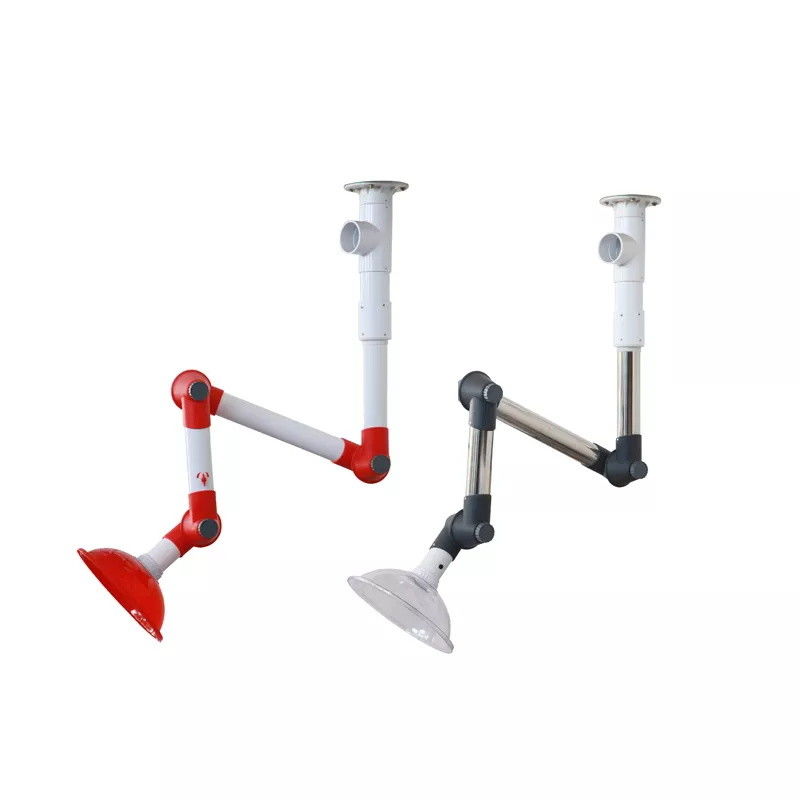

ceiling mounted laboratory PP universal fume extraction arm hood
Introduction of ceiling mounted laboratory PP universal fume extraction arm hood
Specifications of ceiling mounted laboratory PP universal fume extraction arm hood
| Joints | high-density PP polypropylene material, can be 360 ° rotation adjustment direction, easy to disassemble, reorganization and cleaning |
| Joint ring | non-aging high-density rubber |
| Joint connecting rod | 304 stainless steel connecting rod, with a standard design within the card can be locked together with the joint |
| Joint elastic knob | high-density PP material, embedded stainless steel bearings, and the joint rod lock |
| Air flow control valve | With the design of circular adapter, for manual adjustment, through the external valve knob, adjust the valve angle, to control the incoming air flow |
| Gathering hood | PP white / red / transparent |
| Telescopic catheter | ¢ 50mm, 75mm, 80mm, 90mm, 110mm and Customized ; Materials: Aluminium alloy / PP / stainless steel |
| Joint color | white / red |
| Cover size | 380mm |
| Interface size | 90 / 110 mm |
| Unique 360 ° rotation device | The maximum movable radius of the fixed frame can reach 1600MM |
| Standard fixed base | High-density PVC material, non-adhesive, molded injection molding, fastness, not bottom off |
| Another alternative fixed base | hanging stainless steel base |
